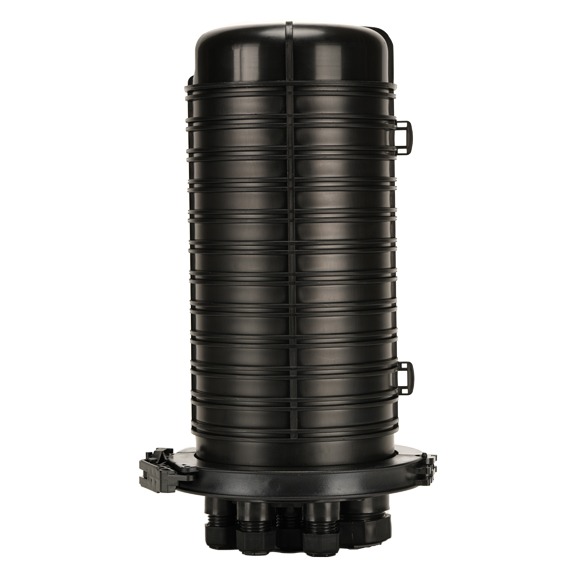

288F Fiber Splice Closure

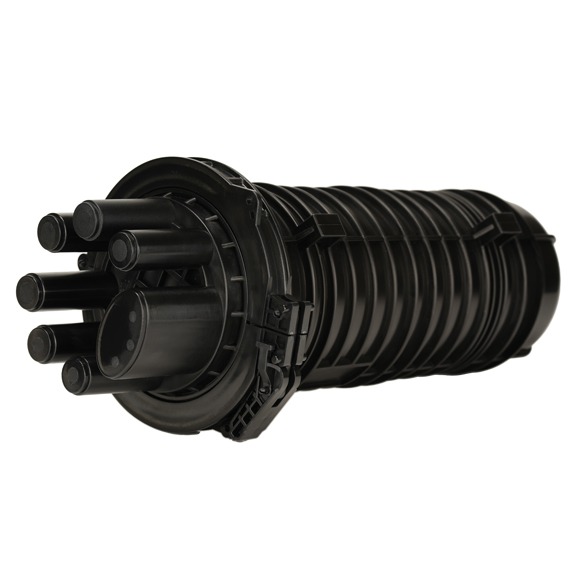

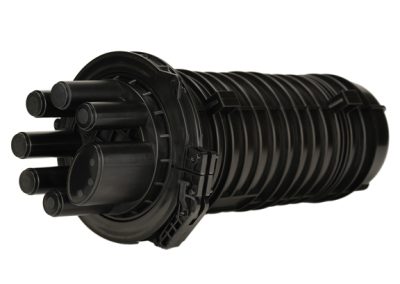

Mechanical-Seal
hot-shrinkage-seal
9 cable ports, 12 splice trays, support brackets, and 288 fiber access ports. It comes with a mechanical or hot shrinkage seal technique. The fiber optic closure is suitable for outdoor aerial, pole mount, wall mount, and underground applications.
The fiber optic splice closure integrates the function of distribution, splice, joint and storage of outdoor optical fiber cable(ofc), and can be used in aerial, duct, pole, wall mounting, underground direct buried fiber optic cable projects.
Integrity
- Accepts cables from 10mm – 22mm diameter
- Direct Burial or Aerial applications
- Can be configured for butt or in-line applications
- Integrated splice trays included
- Permanent waterproof sealing requires no re-entry kit
- IP rate: 68
| Part Number | GC820 |
|---|---|
| Dimensions | 19.9xΦ7.9" (505xΦ200mm) |
| Weight | 7.3lbs |
| Cable Ports | 9 (8 small round ports, 1 big round port) |
| Splice Trays | 12(twelve) 24-fiber splice trays included |
| Splice Capacity | 288F single fusion (432F optional) |
| Material | Molded of robust PP and ABS |
| Mounting | Aerial(strand), poel, vault and pedestal |
| Sealing | Mechanical / Hot shrinkage |
| Protection Level | IP68 |
