home >> product >>handhole & vaults >>17″x30″ handhole
17-30 Handhole
17-30-24
17-30-handhole-vault

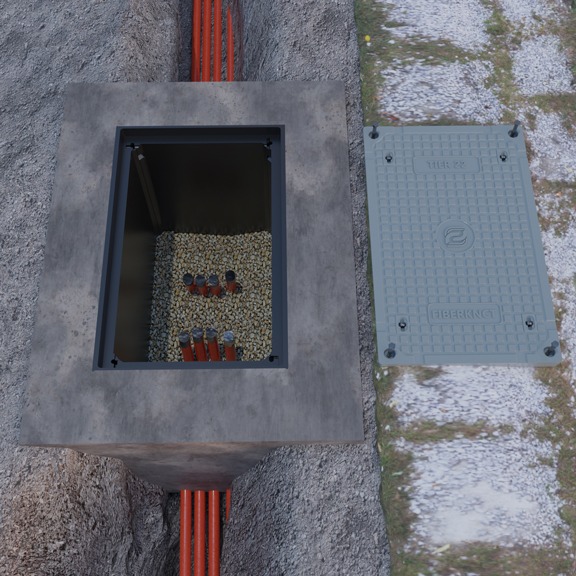

17-30 handhole can be used to protect the FiberKnct 44F,288F,24F+144F, 24F+288F, 48F+144F, 48F+288F splice closure, a 144 or 288 fiber distribution hub or FiberKnct fiber pedestal for fiber access with below grade cable management. Our handholes are equally suited for drop cable, splicing, interconnect, and mid-span scenarios, which allows for maximum flexibility and cost efficiency in the FTTX network.
The handhole is a fiber vault with a side pannels design that introduces the most cost-effective shipping, and its quick construction factor increases deployment speed for customers.
Fabricated from advanced composite thermoplastic, the handhole has unbeatable reliability while keeping an excellent strength-to-weight ratio than competitive enclosures.
- Lightweight composite materials, High strength-to-weight ratio.
- Side Panel design reduces shipping costs and storage space.
- ANSI/SCTE 77 Tier 22 rating.
- Non-crack and non-corrosive.
| Part Number | OT1730 |
|---|---|
| Load Bearing | SCTE77-Tier22 |
| Inner Size | 17"x30"x24" |
| Outer Size | 24"x34"x24" |
| Cover Size | 21"x32"x2" |
| Material | Composite |
| Total Weight | 113lbs |
| Fastening | FastClip |
| Tailorable Height | 24", 35", 47" |
