home >> product >>handhole & vaults >>24″x36″ handhole

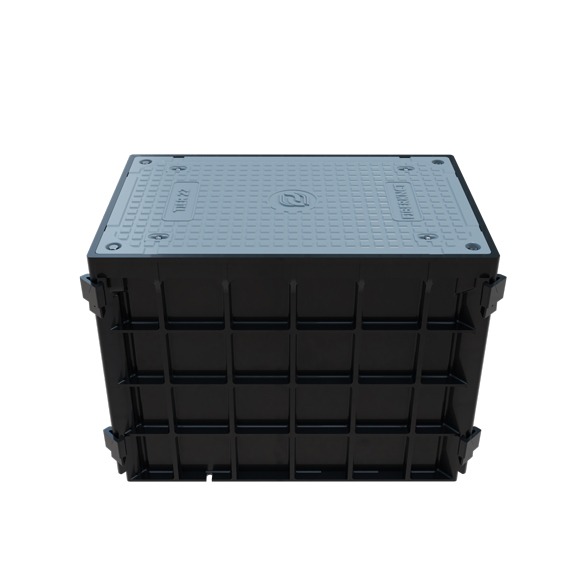

24-36 Handhole
Formed from an advanced composite thermoplastic, these vaults provide a solid base and lightweight material alternative to traditional polymer concrete enclosures. A 24-36 handhole is recommended for a single GC 144F splice closure or 288F Closure or a combination of any two of the 24F, 48F closure, 144F closure and 288F Closure, also match a 144 or 288 fiber distribution hub or FiberKnct fiber pedestal for fiber access with below grade cable management.
The handhole is a fiber vault with a side pannels design that introduces the most cost-effective shipping, and its quick construction factor increases deployment speed for customers.
Fabricated from advanced composite thermoplastic, the handhole has unbeatable reliability while keeping an excellent strength-to-weight ratio than competitive enclosures.
-
Integrity
- Compliant to ANSI/SCTE 77 Tier22
- Compliant to Western Underground Guide 3.6
Protection
- Hex head security bolts
- HDPE fast clip Fastener
- Rugged Side Panel design allows compact transport which reduces shipping costs.
Access
- Solid composite lid, customized patterns, logos, designs
- Easy access by a lifting hook provided by FiberKnct
- Security Lock is Optional as the customer required
Part Number | OT2436 |
---|---|
Load Bearing | SCTE77-Tier22 |
Inner Size | 24"x36"x24" |
Outer Size | 26"x39"x24" |
Cover Size | nearly 26"x38"x1.5" |
Material | Composite |
Total Weight | 155lbs |
Fastening | FastClip |
Tailorable Height | 24", 35", 47" |
