12-fdh

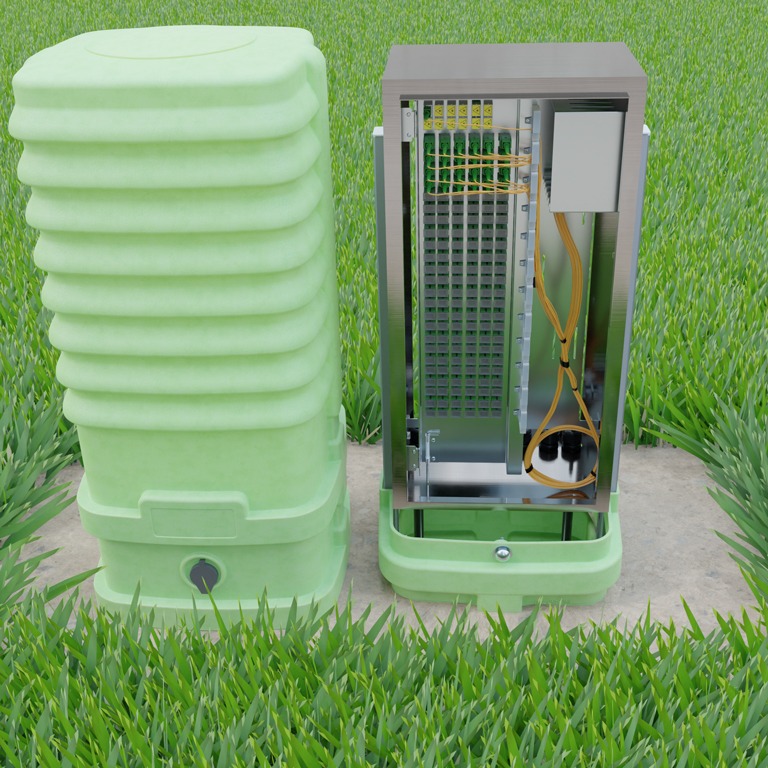

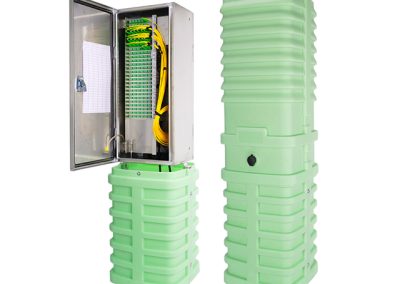

The FiberKnct FDH (fiber distribution hub) pedestal PON option provides a cost-effective solution to service up to 144 homes. Each pedestal can be loaded with a single 12-F FiberKnct feeder cassette that supports 12 individual fusion splices or a single mass fusion splice. Up to 12 splice cassettes can be installed per pedestal. Splitter compartments give flexibility to High-Density style splitters.
They are designed for superior environmental protection of optic fiber and copper and broadband network equipment, such as closures, CATV optical terminals, and splitter combos. The pedestal offers service providers a full range of above-grade distribution points that are easy to install and service. FiberKnct Pedestals offer years of dependable FTTx network service of splice or interconnect connectivity at the access point for the last mile drop.
Our Louvered Fiber Pedestal Enclosures are roto plastic constructed by rugged, high-performance HDPE. This pedestal is the medium dimension of fiber optic pedestal in the market which allows more tray capacity. 14″x14″x47″ outer sized.
| Part Number | WL1212-FDH |
|---|---|
| Dimensions (over all) | 14"x14"x47" |
| Inner Footprint | 12”X12” |
| Distribution Quantity | 144 Ports |
| Cover Height(Dome) | 30" |
| Base Height | 20" |
| Feeder Port | 12 |
| Cable Entries | 6 |
| Connector Type | SC/UPC, SC/APC, LC/UPC, LC/APC |
| Material | HDPE |
WL1212-FDH
WL1212-C
WL1212-U-CB
WL1212-I-CB
WL1212-I
