home >> product >> fiber pedestals >> 12c fiber enclosure pedestal
1212u-cb

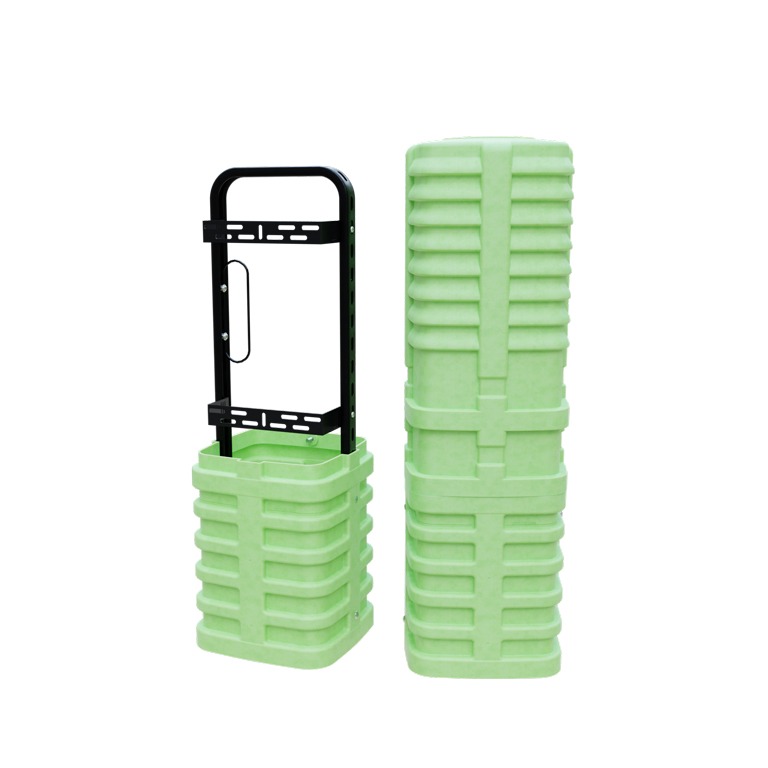

The FiberKnct enclosure pedestal is an empty pedestal and metal bracket assembly allowing customers to deploy fiber splice enclosure and trays to provide a flexible splice-only solution. The FiberKnct enclosure pedestal can be configured to support the specific drop cable, multi-fiber and ring cut requirements.
They are designed for superior environmental protection of optic fiber and copper and broadband network equipment, such as closures, CATV optical terminals, and splitter combos. The pedestal offers service providers a full range of above-grade distribution points that are easy to install and service. FiberKnct Pedestals offer years of dependable FTTx network service of splice or interconnect connectivity at the access point for the last mile drop.
Our Louvered Fiber Pedestal Enclosures are roto plastic constructed by rugged, high-performance HDPE. This pedestal is the medium dimension of fiber optic pedestal in the market which allows more tray capacity. 14″x14″x47″ outer sized.
| Part Number | WL1212-C |
|---|---|
| Dimensions (over all) | 14"x14"x47" |
| Inner Footprint | 12”X12” |
| Drop Quantity | 16 |
| Cover Height(Dome) | 30" |
| Base Height | 20" |
| Mounting Type | Stake / Frame |
| Braket Options | U Frame Dural Cross Bar |
| Material | HDPE |
WL1212-FDH
WL1212-C
WL1212-U-CB
WL1212-I-CB
WL1212-I
