As an environmentally-protected access point along the entire last mile of the fiber network, the FiberKnct pedestal plays a field-proven role in enabling service providers to build reliable, cost-effective fiber-to-the-premises (FTTP) and fiber-to-the-home (FTTH) networks. The non-metallic construction allows the pedestal to offer the flexibility, durability and reliability required by telecom service providers

See Splice Pedestal Install Video

They are designed for superior environmental protection of optic fiber and copper and broadband network equipment, such as closures, CATV optical terminals, and splitter combos. The pedestal offers service providers a full range of above-grade distribution points that are easy to install and service. FiberKnct Pedestals offer years of dependable FTTx network service of splice or interconnect connectivity at the access point for the last mile drop.

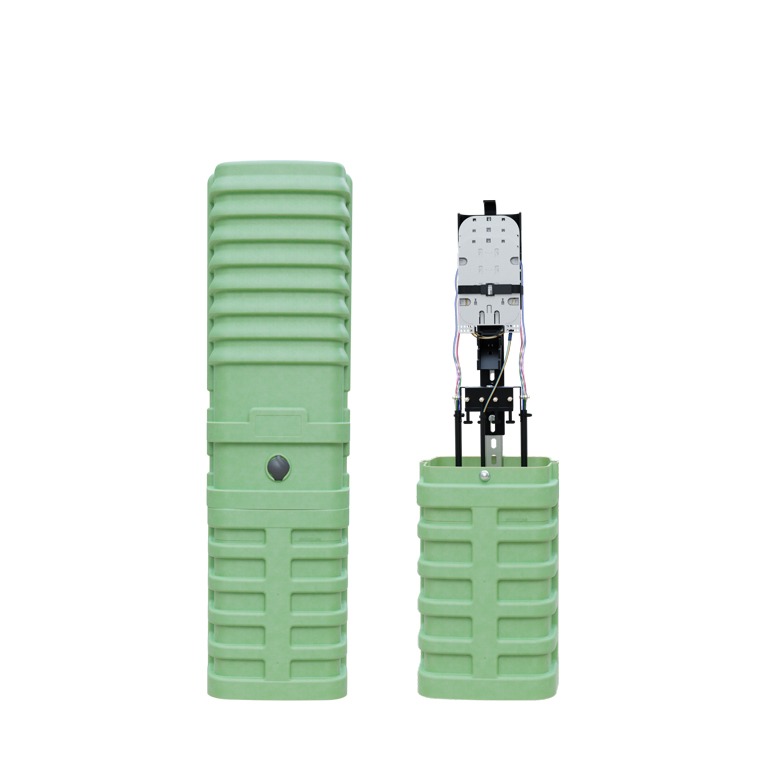

Our Louvered Fiber Pedestal Enclosures are roto plastic constructed by rugged, high-performance HDPE. This pedestal is the medium dimension of fiber optic pedestal in the market which allows more tray capacity. 10″x10″x38″ outer sized.

Part NumberWL0808-F
Dimensions (over all)10"x10"x38"
Inner Footprint8”X8”
Drop Quantity12
Cover Height(Dome)25"
Base Height16"
Splice Trays4
Splice Capacity144F
MaterialHDPE
1212u

WL1010-U

1212u-cb

WL1010-U-CB

1212-i-cb

WL1010-I

1212-i

WL1010-I-CB
